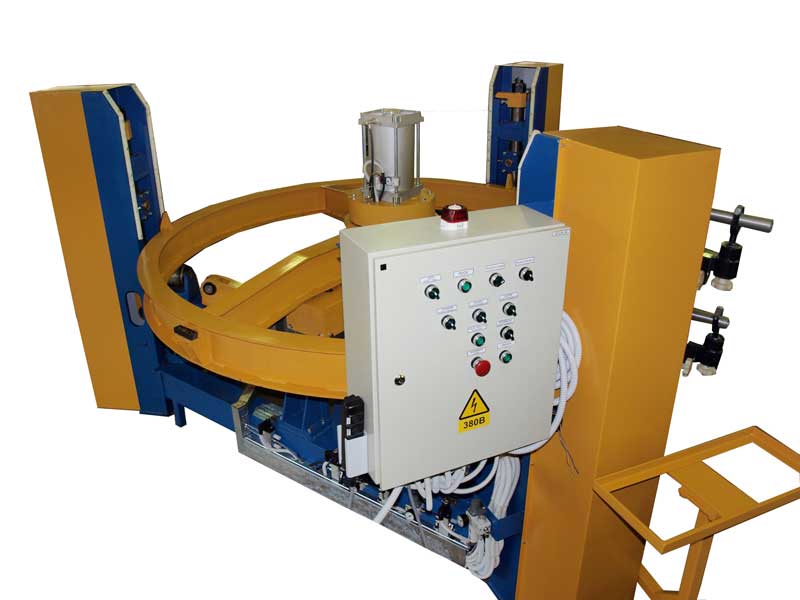

The stand provides a set of technological operations related to the assembly of the heads and shell, their joint welding and trimming of the assembled unit to the required size.
Operation principle
The head is installed on the support surfaces of the rotary platform with the convex part upwards, the shell is installed, clamped and tacked. After tacking, the assembly is released from the clamps, the copier is set to the working position, the rotary drive is switched on and the assembly is welded (cut).
Specifications:
| 1. | Overall dimensions of the assembly, mm: | |
| diameter | 2410 | |
| height | 645 | |
| weight, kg | 384 | |
| 2. | Load capacity, kg | 600 |
| 3. | Platform rotation angle, degrees | 360 |
| 4. | Total vertical clamping force of the unit, kg | 3000 |
| 5. | Clamp drive | pneumatic |
| 6. | Type of rotation drive | electromechanical |
| power, kW | 1,1 | |
| 7. | Welding method | automatic |
| 8. | Welding speed, m/min | 0,3…1 |
| 9. | Cutting method | plasma |
| 10. | Cutting speed, m/min | 1 … 1,5 |
| 11. | Method of guiding torches along the seam | mechanical copier |
| 12. | Drive for setting the torches into the working position | pneumatic |
| 13. | Network air pressure, MPa | 0,4…0,6 |
| 14. | Overall dimensions of the stand, mm | 2916х2804х1725 |
| 15. | Weight, kg | 1993 |
