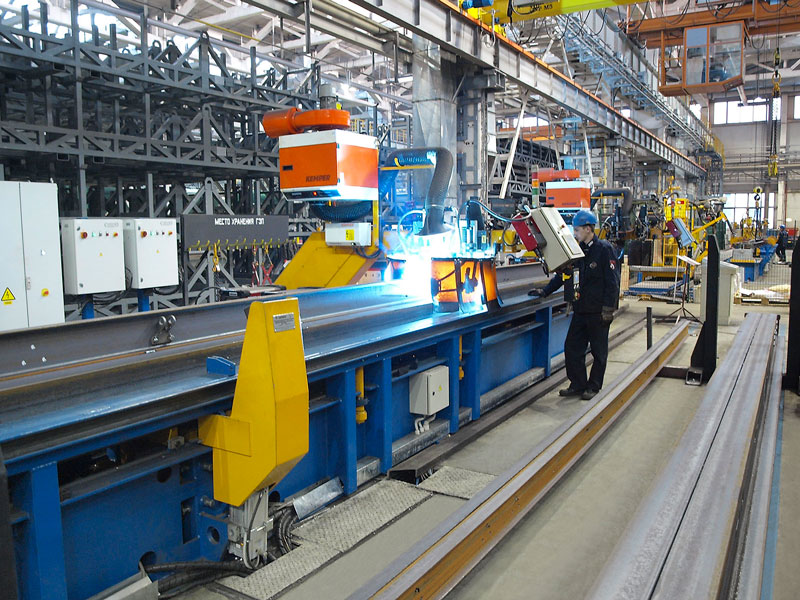

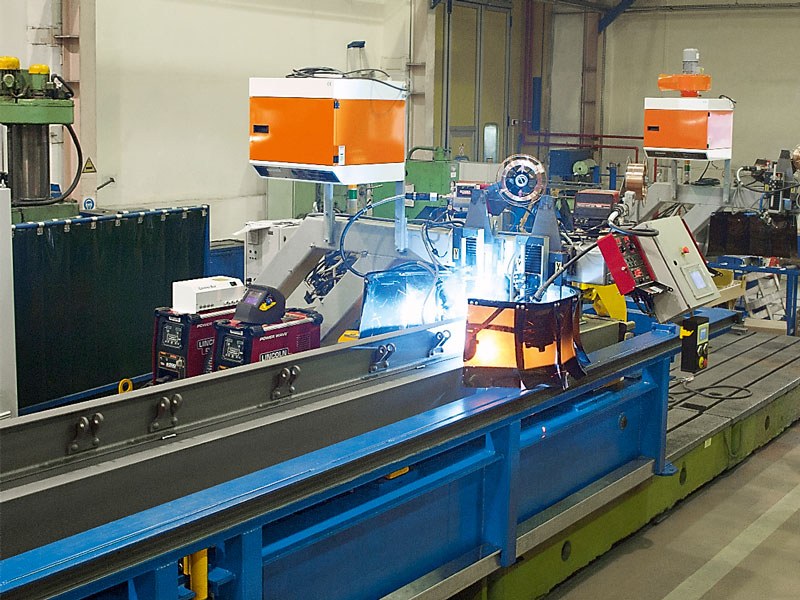

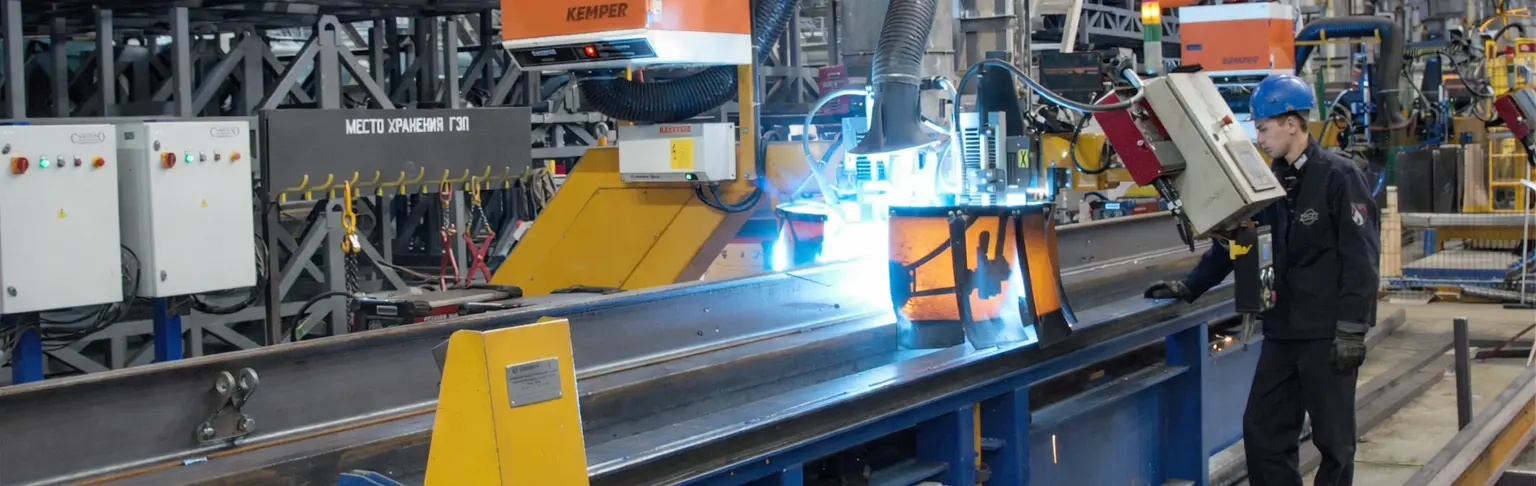

Automatic welding stand for center sill and I beam welding
The stand has been designed for center sill and I beam assembly and automatic welding in shielding gas atmosphere using automatic seam tracking system.
Video
Specifications:
| 1. | Overall dimensions of the detail, mm | 12960х610х500 |
| 2. | Production, beams / h | 2.5 |
| 3. | Assembly stand | |
| Center sill positioning unit | pneumatic | |
| Center sill vertical fixation unit | pneumatic | |
| Deflection type | pneumatic | |
| Deflection force, kgf | 32000 | |
| Maximal deflection, mm | 140 | |
| Support drive system | pneumatic | |
| Support type | adjustable | |
| Support turning angle, degrees | 90 | |
| 4. | I-beam location carriage | |
| Type | portal-frame | |
| Motion mechanism | electromechanical | |
| Power, kWt | 0,7 | |
| Motion speed, m/min | 0…12,8 | |
| Control mechanism | frequency | |
| I-beam centering unit | pneumatic | |
| 5. | Welding plant | |
| Carriage motion drive | electromechanical | |
| Number of carriages, pcs. | 2 | |
| Welding speed control type | frequency | |
| Seam type | non-standard | |
| Number of simultaneous welding seams, pcs. | 2 | |
| Seam tracking system | electromechanical (Carpano) | |
| Welding head type | Lincoln Electric | |
| Number of semiautomatic welders | 4 | |
| Welding type | with shielding gases | |
| Welding source type | Power Wave S500 Lincoln Electric | |
| Welding source number, pcs. | 4 | |
| 6. | Working air pressure, mPa | 0,7…0,8 |
| 7. | Air consumption, m3/h | 22,6 |
| 8. | Installed capacity, kWt | 3 |
| 9. | Overall dimenstions, mm | 19300х5460х2050 |
| 10. | Weight, kg | 15970 |
