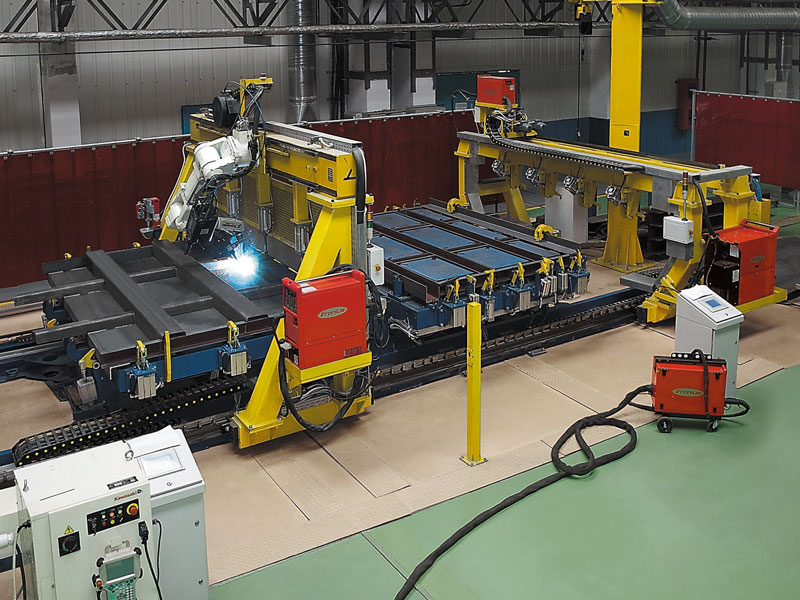

The stand is designed for assembly and automatic welding of end walls in the reverse position and robot-aided arc welding in normal position.

All the operations of clamping and welding of the item are performed automatically, operator just needs to control the welding process and provide loading/unloading of the workpieces. Applying of Festo intellectual pneumatic automation allows to control workpiece assembly accuracy, to inform the worker about deviations, minimizes human factor.

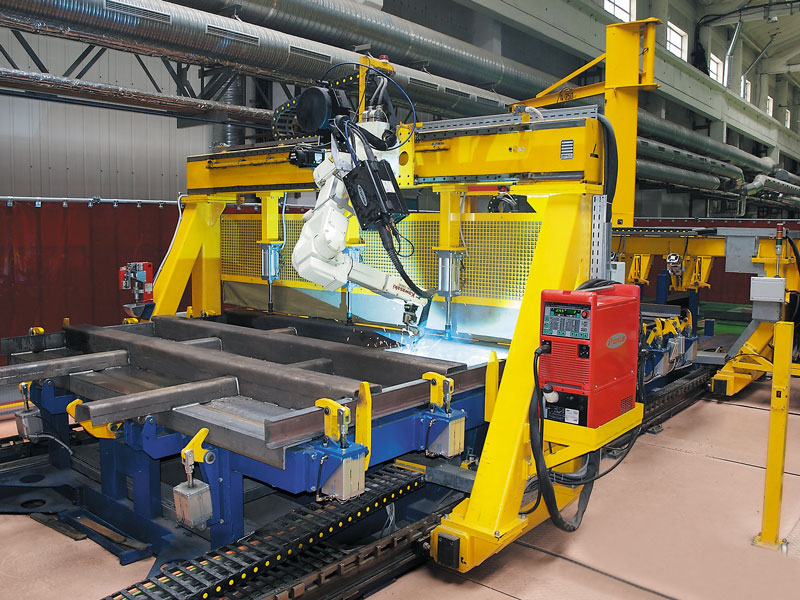

After welding from the reverse side the end wall is rotated by 1800 with a built-in rotator and laid on the stand for welding in normal position, then it is fixed and welded with a welding robot.

Specification

1.

Overall dimensions of the items to be assembled, mm

2930х264х2492

2.

Weight of the item to be assembled, kg

593,5

3.

Stand for assembly and welding of the end wall in the reverse position

Parts fixation principle

pneumatic

4.

Stand for welding of the end wall in normal position

End wall fixation principle

pneumatic

5.

Rotator

Rotator drive

electromechanical

Power, kW

3,0

6.

Gantry for automatic welding of covering with framework

Gantry drive

electromechanical

Welding speed, m/h

30 … 60

Cruising speed, m/h

480

Speed regulation principle

frequency

Carriage travel drive

electromechanical

Seam tracking principle

mechanical

Seam type

lap

Lifting-lowering drive of welding torch

pneumatic

Number of seams welded simultaneously, piece

1

Power source

Fronius VS 4000-2

7.

Gantry for robot-aided welding of end wall in normal position

Gantry drive

electromechanical

Travel speed, m/h

480

Speed regulation principle

frequency

Welding type

Arc in СО2

Welding robot type

Kawasaki FAO6E FD40

End wall clamping principle

pneumatic

Power source

Fronius TPS 5000-2

8.

Air pressure in air main, MPa

0,5 … 0,6

9.

Installed capacity excluding welding equipment, kW

11,0

10.

Overall dimensions of the stand

12120х7280х3880

11.

Weight, kg

12152
