Assembly line, welding panels with built-in tilter
The line is designed for welding from one or the other side of a card of 4 sheets of metal for the manufacture of a tank boiler.
The line includes:
- Assembly stand and tacks.

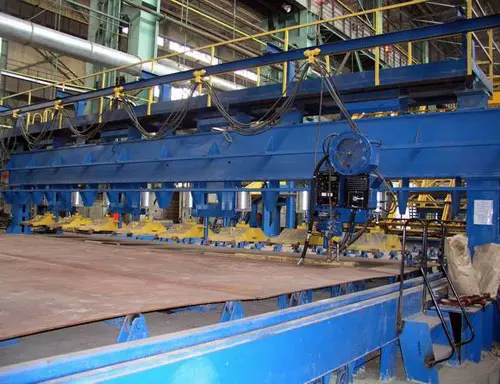

- Complex for automatic welding of panels on the front side.

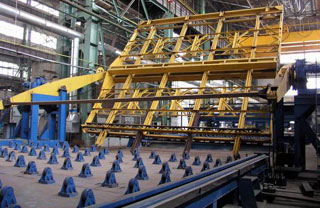

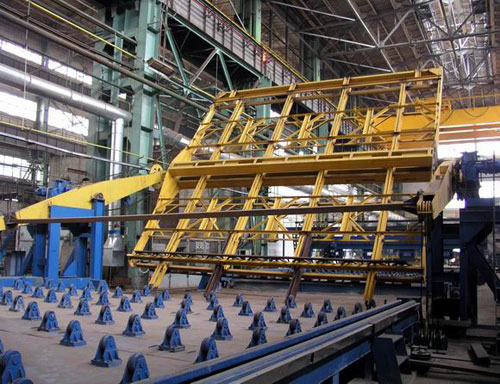

- Turner of sheet panels.
- Complex for automatic welding of panels on the reverse side.
The line includes:
- Assembly stand and tacks.
- Complex for automatic welding of panels on the front side.
- Turner of sheet panels.
- Complex for automatic welding of panels on the reverse side.
Specifications:
|
1. |
Dimensions of the welded panel, mm |
|
|
length |
10080 |
|
|
width |
9450 |
|
|
thickness |
9-11 |
|
|
2. |
Pressing and pressing pneumatic cylinders control |
manual |
|
3. |
Number of transborder trolleys for transportation of the panel, pcs. |
2 |
|
4. |
Speed of movement of carts of transborder devices, m/min |
15 |
|
5. |
Total installed power el. stand drives, kW |
4.4 |
